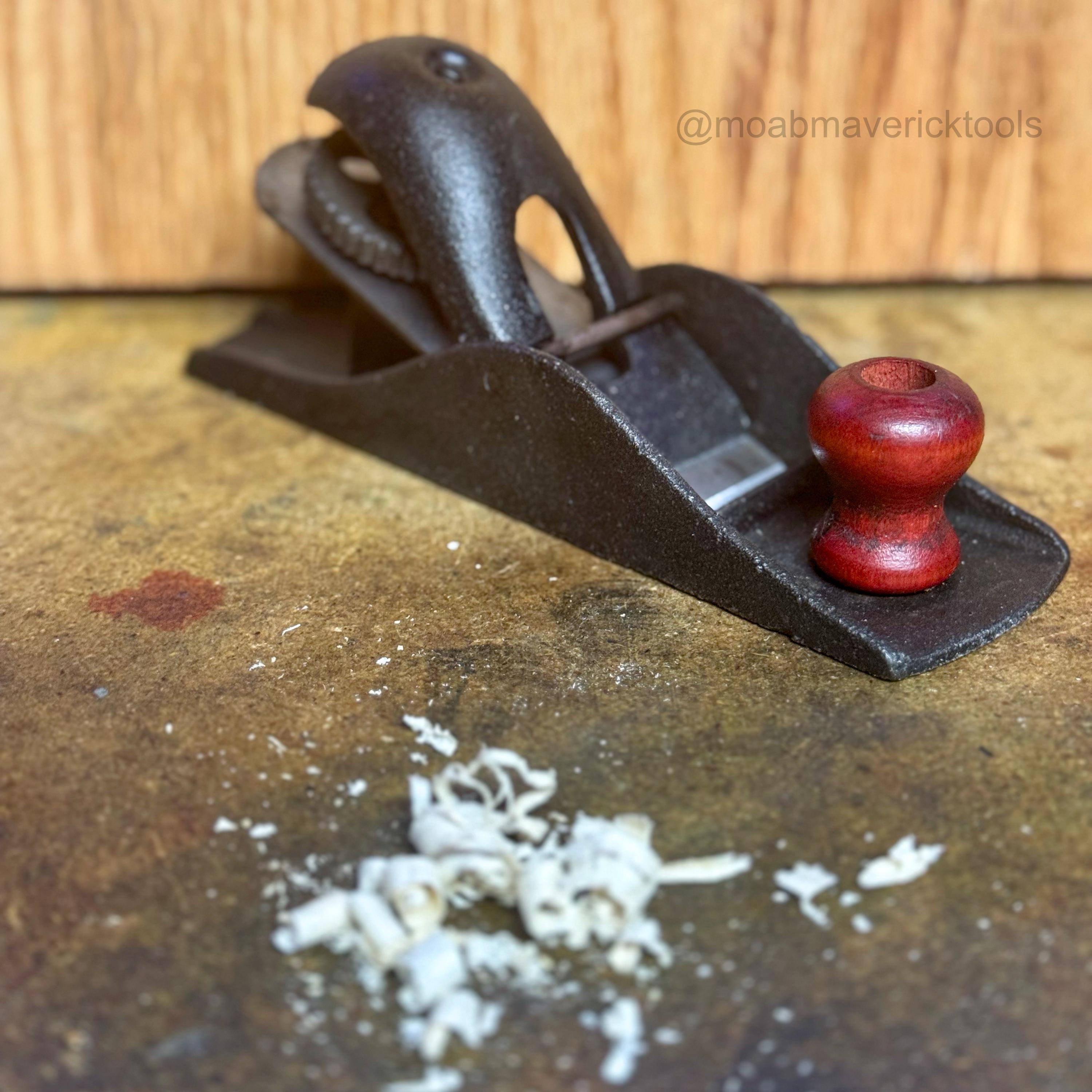

Vintage simple bench plane – single-iron utility wood plane, non-Bailey design (no chipbreaker)

Vintage simple bench plane with a single-iron, non-Bailey design, cleaned, tuned, sharpened, and ready for shop duty. This small utility plane pulls honest shavings and is ideal as a budget user for rough work, trimming, and general woodworking jobs where you don’t want to baby a collectible smoother.

Detailed description

Tool details

Vintage small bench / block-style utility plane
Simple one-piece cast body, no separate frog
Single iron only – no chipbreaker by design
Overall length approx. 7½ in.
Iron width approx. 1⅝ in.
Cast iron body with textured factory finish
Red-stained hardwood front knob

Condition

Solid casting with no cracks or repairs seen
Sole lapped on a granite reference block for good working contact at toe, mouth, and heel; light cosmetic pitting remains, as shown
Iron has good life left; some staining and patina but no active rust
Adjuster wheel and screw work smoothly after cleaning
Honest cosmetic wear, casting texture, and small dings from previous shop use

Restoration work performed

Fully disassembled, degreased, and cleaned
Rust and grime removed while preserving original patina
Sole trued “good enough for work” on granite plate – not ground dead-flat like a collector smoother
Iron back flattened at the cutting edge, bevel reground and honed; final honing on fine abrasives and burr removed
Adjuster screw and wheel cleaned, oiled, and tested through full travel
Wood knob lightly sanded, then finished with oil and wax for a smooth, dry feel
Metal surfaces treated with light oil and paste wax for protection

How it behaves

This is a simple single-iron utility plane, not a precision Bailey smoother. Expect:

Clean, serviceable shavings on softwood and general shop work
A smaller “sweet spot” than a premium plane
More suited to roughing, trimming, and utility work than final finishing passes

It’s perfect as a knock-around shop plane, a first hand plane for someone on a budget, or a secondary user you don’t mind loaning out.

Care

You’ll receive my printed care sheet with simple tips for oiling, storage, and touch-up sharpening so this little plane stays ready to work for years.

Dating note

Exact year and maker are unknown, but the design and construction place it in the mid-20th century. Etsy requires a decade selection, so I recommend choosing 1950s for the listing.

Bullet highlights

Vintage small utility bench plane
Simple single-iron design – no chipbreaker by design
Non-Bailey one-piece body with basic depth adjuster
Sole lapped for good working contact, not over-flattened
Iron reground, honed, and test-cut on softwood
Cleaned, oiled, and waxed – ready to work out of the box
Red hardwood knob refinished with oil and wax
Great budget user or knock-around shop plane
Honest patina, dings, and pitting preserved for character
Ships with printed care instructions
