Vintage Shapleigh “Diamond Edge” Block Plane – 7” Tuned & Sharpened, Made in USA Hand Plane

Vintage Shapleigh “Diamond Edge” block plane, made in the USA and set up as a ready-to-use shop companion. This is a non-adjustable-mouth block plane in the classic 7” pattern, freshly tuned, sharpened, and test-cut on real wood.

Great little plane for breaking edges, easing chamfers, fitting trim, and general bench work when you don’t feel like dragging out a full-size smoother.

Highlights

Shapleigh Diamond Edge house-brand block plane
Made in USA, mid-20th century (likely 1940s era)
Approx. 7” long body, non-adjustable mouth
Hardened carbon-steel iron, sharpened and ready to work
Lapped sole with slightly eased edges for smoother feel in use
Original japanning mostly intact with honest wear
Hardwood front knob cleaned, refinished, and waxed
Fully disassembled, de-rusted, lubricated, and re-tuned

Details & Measurements

Maker / brand: Shapleigh “Diamond Edge” (house-brand contract plane)
Country of origin: USA (“MADE IN U.S.A” cast into the body)
Overall length: ~7 in (body)
Iron width: approx. 1 5/8 in
Mouth: Non-adjustable, standard opening
Finish: Black japanned body, bare steel sole, stained hardwood knob

This pattern is straightforward and tough – fewer moving parts than the fancier adjustable-mouth block planes, which is exactly what many carpenters liked about them.

Condition Notes

This is a vintage user tool, not a museum piece. Expect:

Japanning is mostly present with scattered chips and rubs from honest use.
Lever cap and adjuster show light finish wear and small dings.
Sole shows a fresh lapping pattern from setup; you’ll see the scratch pattern from the plate, not factory grind marks.
Small cosmetic marks from decades in a toolbox, none affecting function.

No cracks, repairs, or structural damage. Everything seats tight and adjusts as it should.

Restoration & Tuning

This plane has been fully gone through in my shop:

Sole lapped on a flat reference surface and edges slightly eased to prevent catching.
Completely disassembled; body and parts brushed out and cleaned with mineral spirits.
Adjuster screw and plate de-rusted in an Evapo-Rust soak, then finished with 3M abrasive pad and WD-40.
Iron de-rusted, back flattened near the edge, bevel re-established and honed through finer grits, then final sharpened for clean shavings.
Front knob lightly sanded (320), finished with Tried & True oil and a hand-buffed beeswax topcoat.
Metal surfaces treated with Ballistol for corrosion protection; a micro-dot of Hoppe’s on the adjuster threads for smooth feel.
Sole and exterior metal waxed and buffed for a slick, dry-to-the-touch finish.

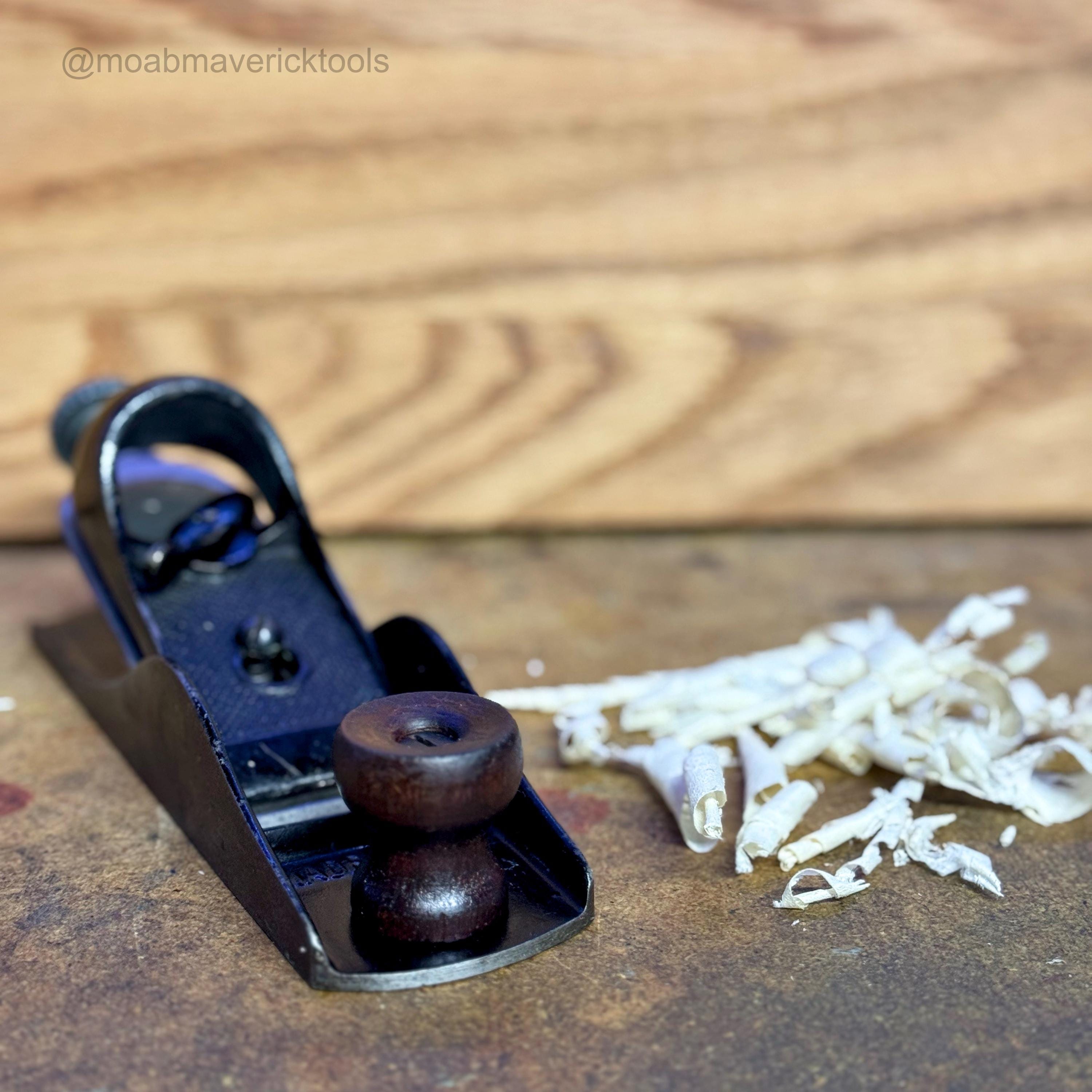

Reassembled, set up, and test-tuned until it produced consistent, clean shavings (see photos).

Unpack it, tweak the iron projection to taste, and it’s ready to go to work.

Good For

Woodworkers who want a simple, reliable user-grade block plane
Hand-tool beginners looking for a tuned vintage plane instead of a big-box special
Vintage tool fans who like hardware-store house brands like Shapleigh, Diamond Edge, etc.
Gift for the woodworker who appreciates tools with some history

Shipping & Packaging

I pack tools like I wish they’d arrive to me:

Iron retracted and secured for shipping
Wrapped to protect the sole and knob
Boxed with plenty of padding so it doesn’t rattle

If you’re grabbing more than one tool from the shop, I’m happy to combine shipping where possible.
